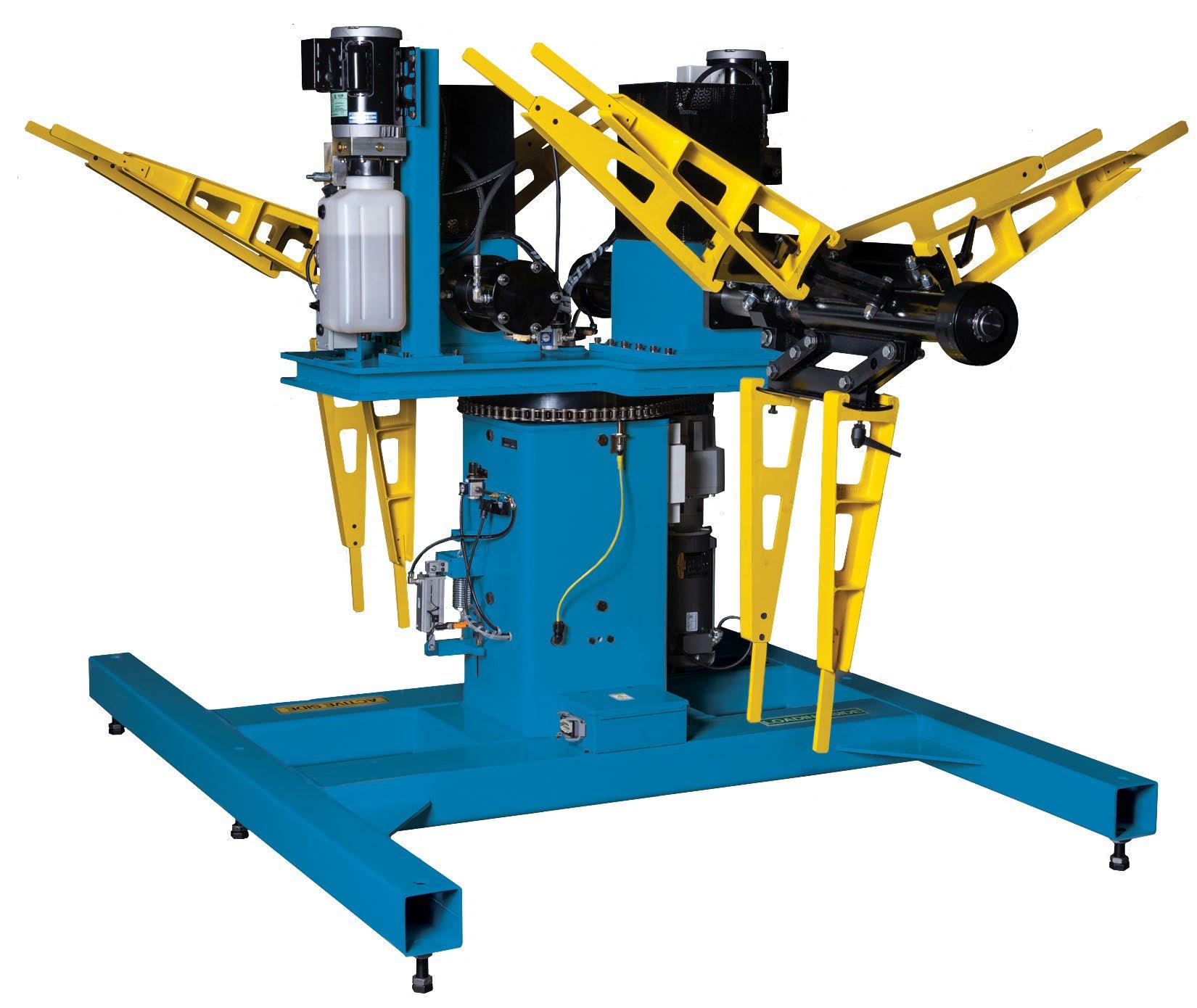

RAPID-AIR 4,000 POUND CAPACITY NON-POWERED DUAL SWIVEL STOCK REEL

We build our series 40 stock reels with careful attention to the things that really matter for lasting durability. Like the brawny shafts with full bearing support to handle heavy coil loads day in and day out, the rugged coil centering arms, and the sturdy all steel cabinets and support bases. Plus, everything else we put into these reels is built rock solid in the Rapid-Air tradition.

MODEL RSPHA4012 SPECIALLY MODIFIED

Maximum weight capacity 4,000 lbs. each side
Maximum coil width 12"
Maximum coil OD (Specially modified arms) 72"
ID expansion range 16" to 24"
Pneumatic brake (Controlled by customer supplied signal) Air brake
Hydraulic expansion included
Powered rotation with remote activation of locking pin included
2 sets of (3) 72” outer keeper arms included
2 sets of (3) 72” inner keeper arms included

OPTIONAL EQUIPMENT:

440vac step-down transformer for power unit (installed and wired) $ 2,648.00
1 extra set of (3) 72” outer keeper arms $ 1,500.00
1 extra set of (3) 72” inner keeper arms $ 1,500.00

DELIVERY: In Stock – lead time subject to optional equipment

F.O.B. Rockford, Illinois USA
TERMS: 35% down, 35% prior to shipment and balance net (30) days
LINE LAYOUTS AVAILABLE UPON REQUEST
